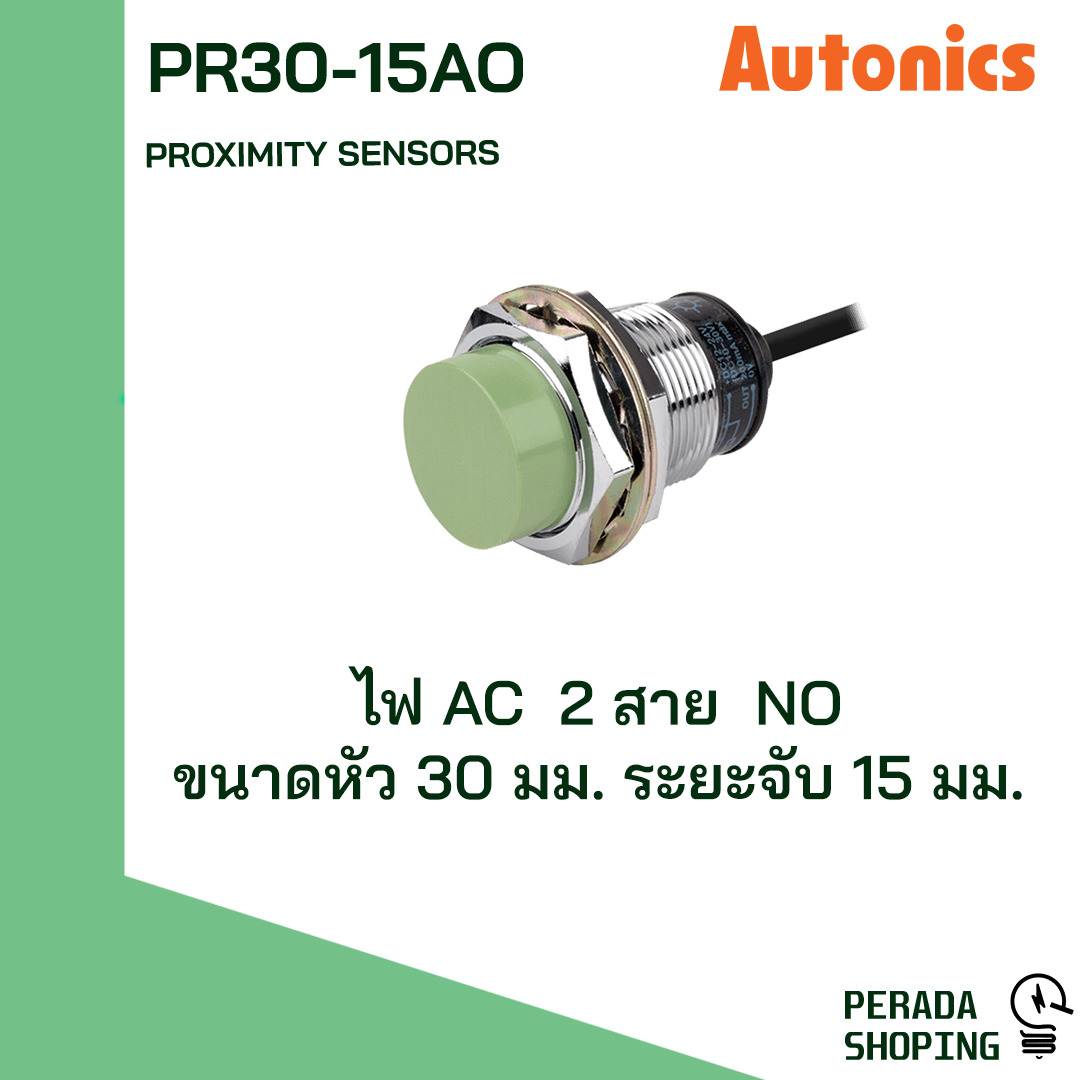

AUTONICS PR30-15AO,PR30-15AC Proximity M30 ระยะตรวจจับ 15mm Non-flush 100-240VAC

Wire type and power	AC 2-wire type 100-240VAC~
Sensing side diameter	M30
Sensing distance	15mm
Installation	Non-flush
Standard sensing target	45×45×1mm(iron)
Response frequency	20Hz
Current specification	Leakage current: Max. 2.5mA
Control output	Normally Open
Material	Brass(nickel plated)
Cable Standard/material	Standard cable
Protection structure	IP67(IEC standard)
Body length	Standard type
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 10V
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Weight	Approx. 207g(approx. 170g)

※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.

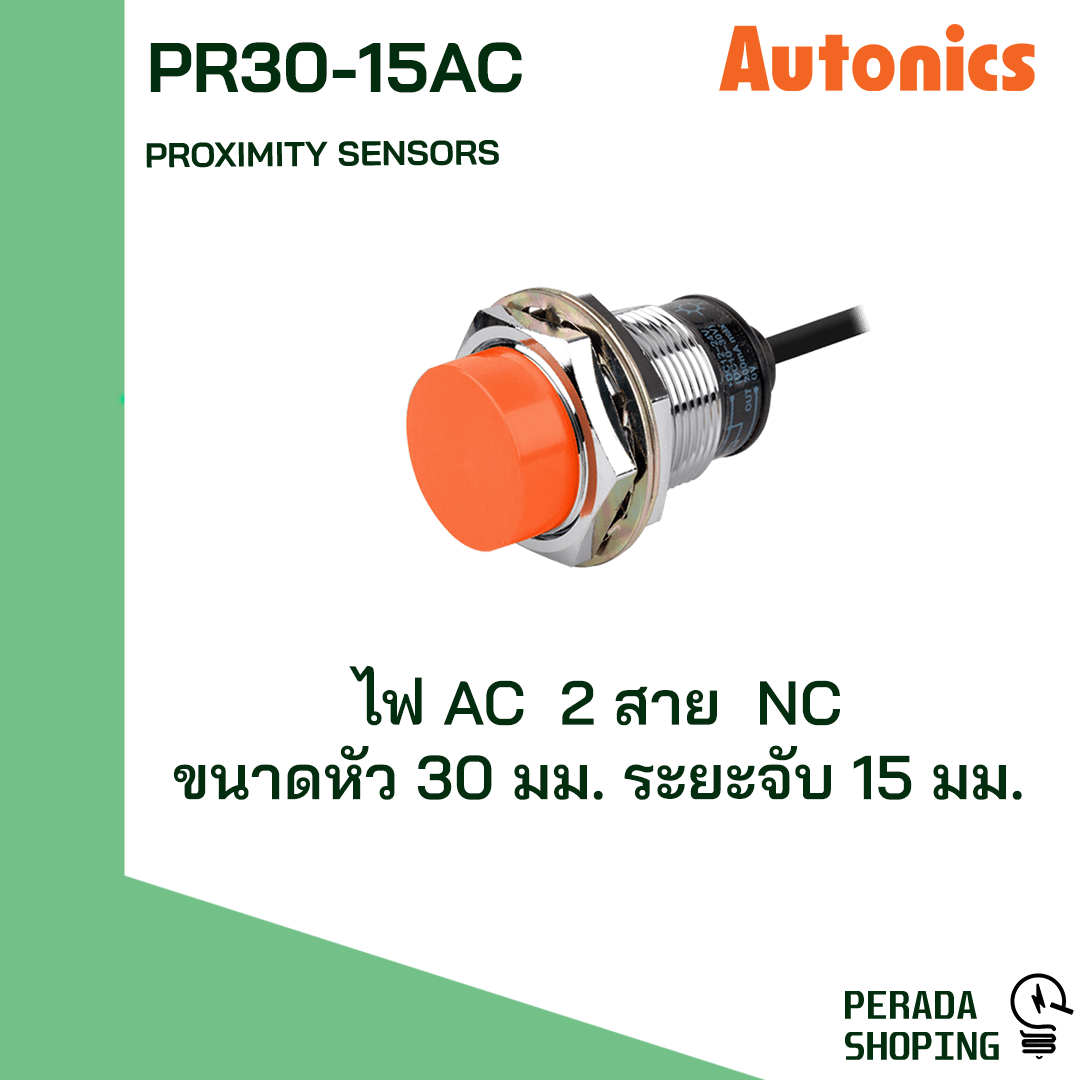

Wire type and power	AC 2-wire type 100-240VAC~
Sensing side diameter	M30
Sensing distance	15mm
Installation	Non-flush
Standard sensing target	45×45×1mm(iron)
Response frequency	20Hz
Current specification	Leakage current: Max. 2.5mA
Control output	Normally Closed
Material	Brass(nickel plated)
Cable Standard/material	Standard cable
Protection structure	IP67(IEC standard)
Body length	Standard type
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 10V
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Weight	Approx. 207g(approx. 170g)

※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
