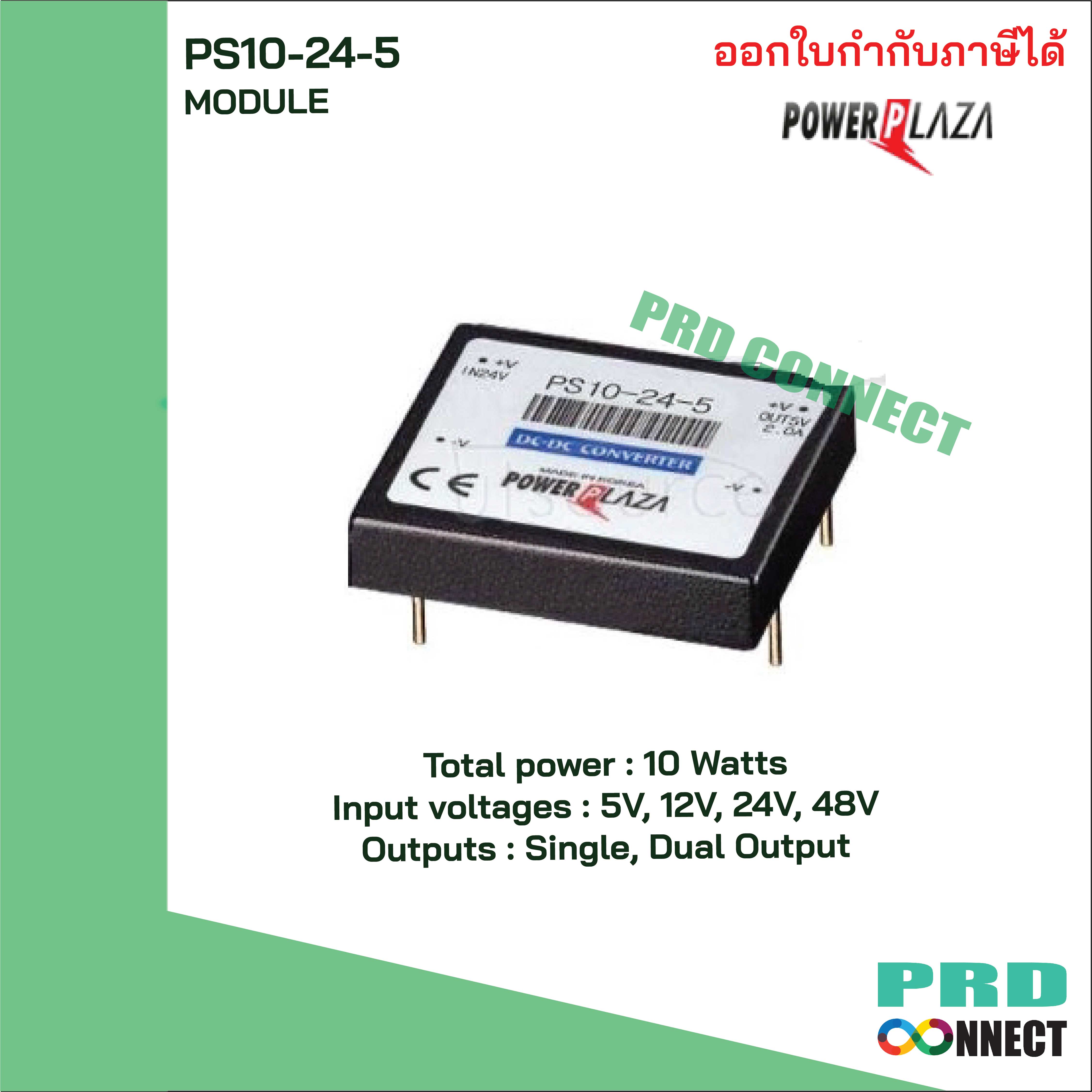

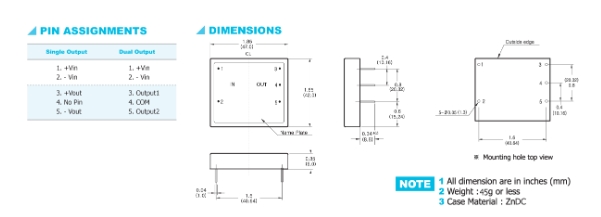

PS10-24-5 Power module 10 Watts Input voltages : 5V, 12V, 24V, 48V

- High Efficiency
- Encapsulated Small / Compact Size
- Wide 2:1 Input Range
- 300kHz Fixed Frequency
- Input / Output Isolation
- Surface Mounting Technology
- Current Mode Control
- Output Low Ripple / Noise
- Low Start up Current

- Operating Temperature Range .................... -20℃~71℃
- Option, see Note 2 .......................................... -40℃~85℃
- Operating Humidity (Non-Condensing) ...... 20% ~ 90%RH
- Storage Temperature Range ........................ -40℃~105℃
- Storage Humidity (Non-Condensing) ......... 10% ~ 95%RH
- Cooling Method ............................................... Convection
- MTBF (MIL-HDBK-217F) ................................ 4.8×10⁵hrs
- Safety (Single output) ..................................... CE_LVD (EN60950) through TUV

INPUT
- Input Range .................................... DC 5V(4.5V - 7.2V), 12V(8V - 16.5V), 24V(18V -32V), 48V(32V - 63V)
- Efficiency ......................................... 72 - 85% Typ.

OUTPUT
- Output Voltage ................................. 3.3V, 5V, 12V, 15V, ±12V, ±15V, +5V/+12V, +5V/+15V
- Output Voltage Tolerance ............ ±2.0% (Single and Uncomplementary Dual)
                                                               ±3.0% (Complementary Dual)
- Line Regulation ............................. ±0.5% Max.
- Load Regulation ............................ ±1.0% Max. (Single), ±2.5% Max. (Complementary Dual : Minimum Load 10%)
                                                               ±1.0% Max (Dual : Output1), ±4.0% Max. (Dual : Output2)
- Ripple and Noise .......................... 1% of Vout (Bandwidth : 20MHz)

PROTECTION CIRCUIT
- Over Current Protection ................ Work Over 105% of Rating (Current Limited Output) (Note1)

ELECTRICALLY ISOLATED
- Isolation ........................................... Input-Output, Input-Case, Output-Case / DC 500V, 100Mohms
- High Pot ........................................... Input-Output, Input-Case, Output-Case / AC 500V, 1 Min.
